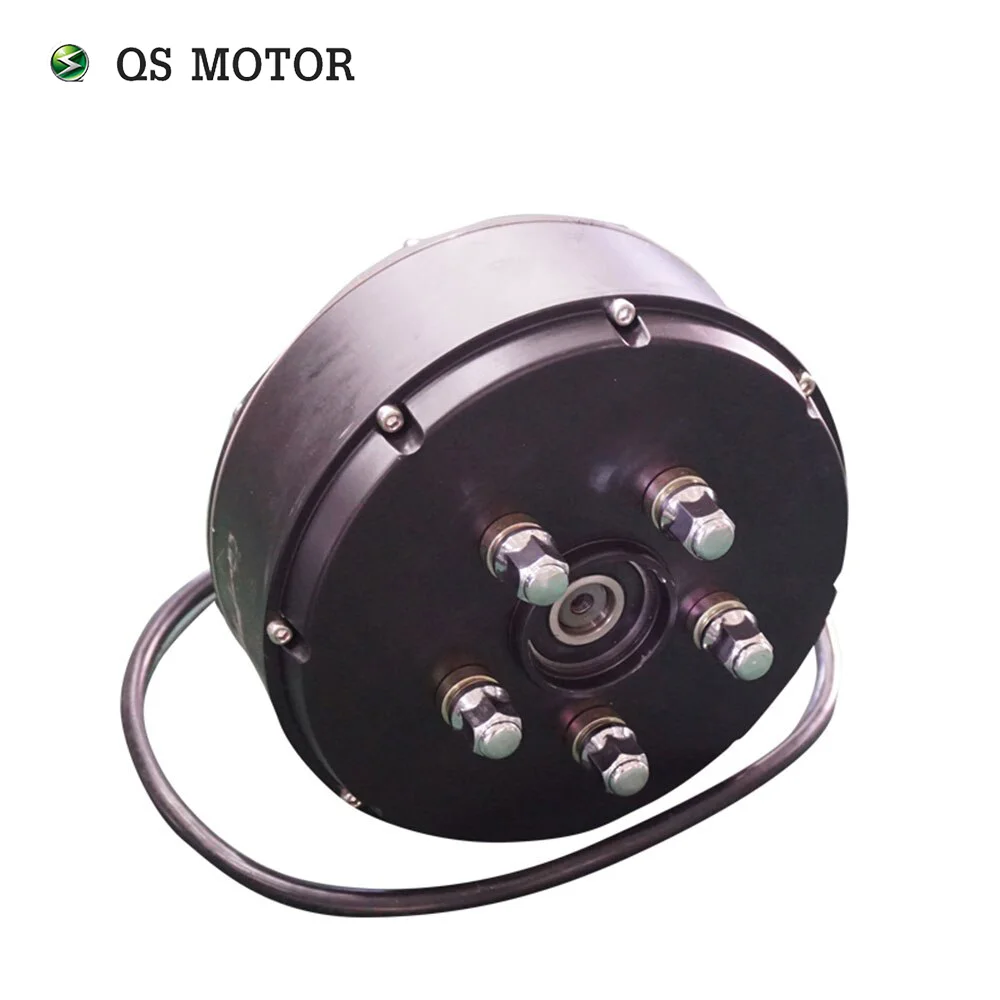

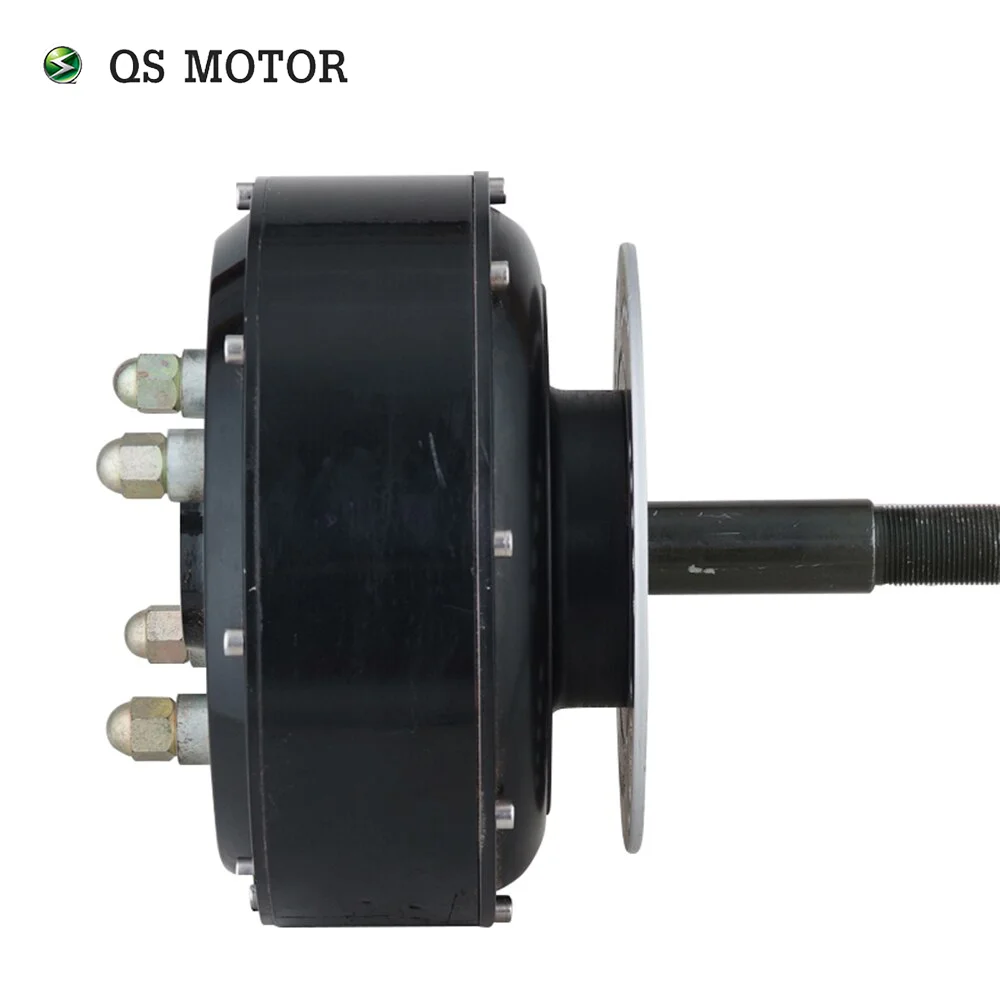

QS Motor E-car 205 3000W 205 50H V2 electric wheel hub motor for small e-car

For 205 E-Car wheel hub motor, it could be used for electric scooter, tricycle, mini/golf car.

205 motor means the diameter of iron ring of rotor is 205mm, for all 205 motor, e.g. 10inch & 12inch 205 e-scooter hub motor,

205 spoke hub motor, 10inch & 12inch 205 single shaft hub motor, 205 E-car Hub motor etc., the configuration & performance is the same as 10inch 205 Hub Motor.

Optional Aluminium cover

Key Features

1). Simplify to make a light electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

PS.1). Above quotation base on 205 electric car hub motor, 48V~96V.

2). Above configuration is suggested for mass production.

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

Product description

Genearlly Spec:

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

• Brand: QS Motor, QSMOTOR

• Motor Design: Single axle without moped rim (Integrated)

• Matching Rim Size:12inch, 13inch & above wheel rim, CB ≥60mm,PCD ≤110mm(PCD 4*100mm, CB60mm as default)

• Magnet Height: 50mm, 23 pole pairs

• Stator: Aluminum Core

• Rated Power: 3000W

• Speed: 24KPH-80KPH, it's customized, genearlly we will design as 72V65KPH.

• Work Voltage range: 48V-96V, will be 72V as default.

• Max Torque approx 189.2N.m

• KV: 9.3/11.1/15.1/16.7(optional)

• Thermic Probe: KTY83-122 (as default, optional)

• Max Efficiency approx 84%

• Working Temperature: 70-120℃ , peak 150 ℃

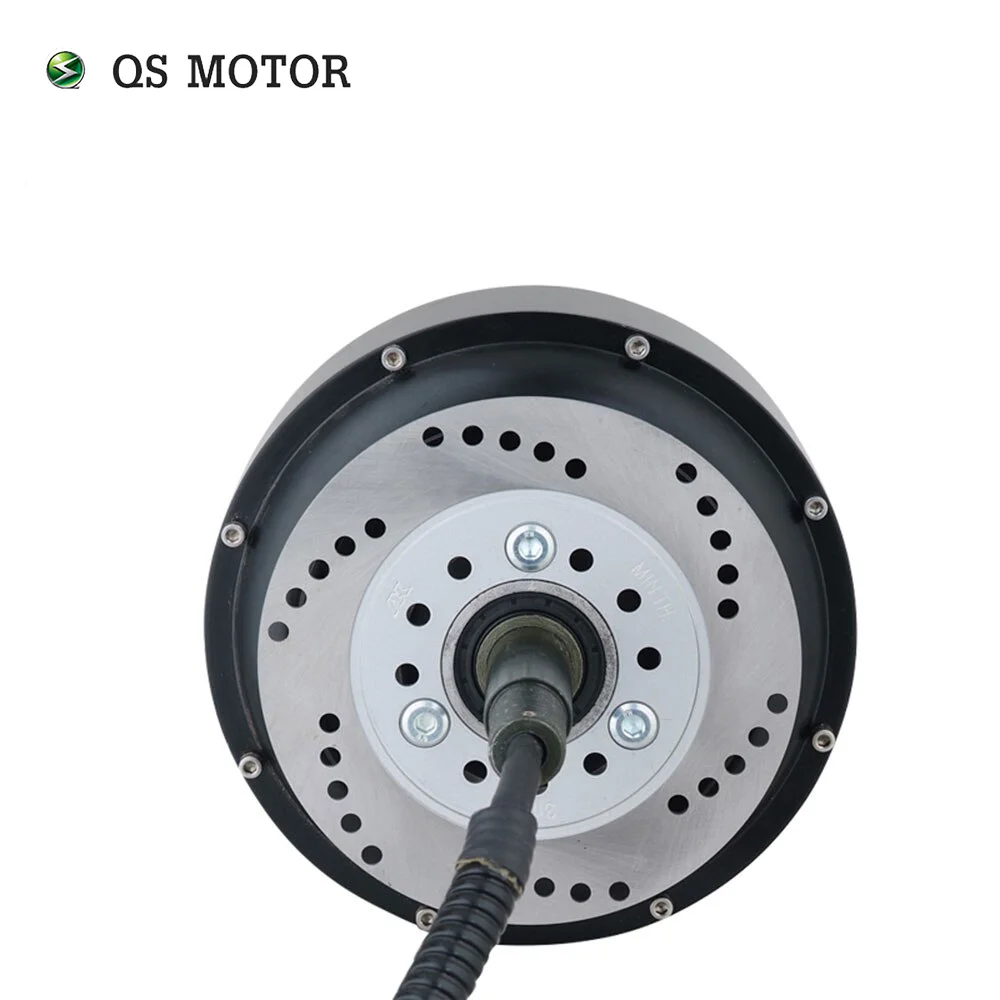

• Brake type:MopedDisc brake (as default), PCD: 3*80mm, CB: 58MM

• Dual Halls with waterproof connectors(One for using, one for spare

• 12mm axle flats

• 10mm² Cross Section of Phase Wire(not including insulation layer)

• Waterproof Grade: IP54

• Color: Black (As default)

• N.W/ G.W: 17.0kg/18.5kg

Dimension Drawing:

• QS 205 e-car hub motor(Iron cover)

QS 205 e-car hub motor (Aluminum cover)

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Conversion kits for 205 3kW E-Car hub motor

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

Application for E-Car hub motor
