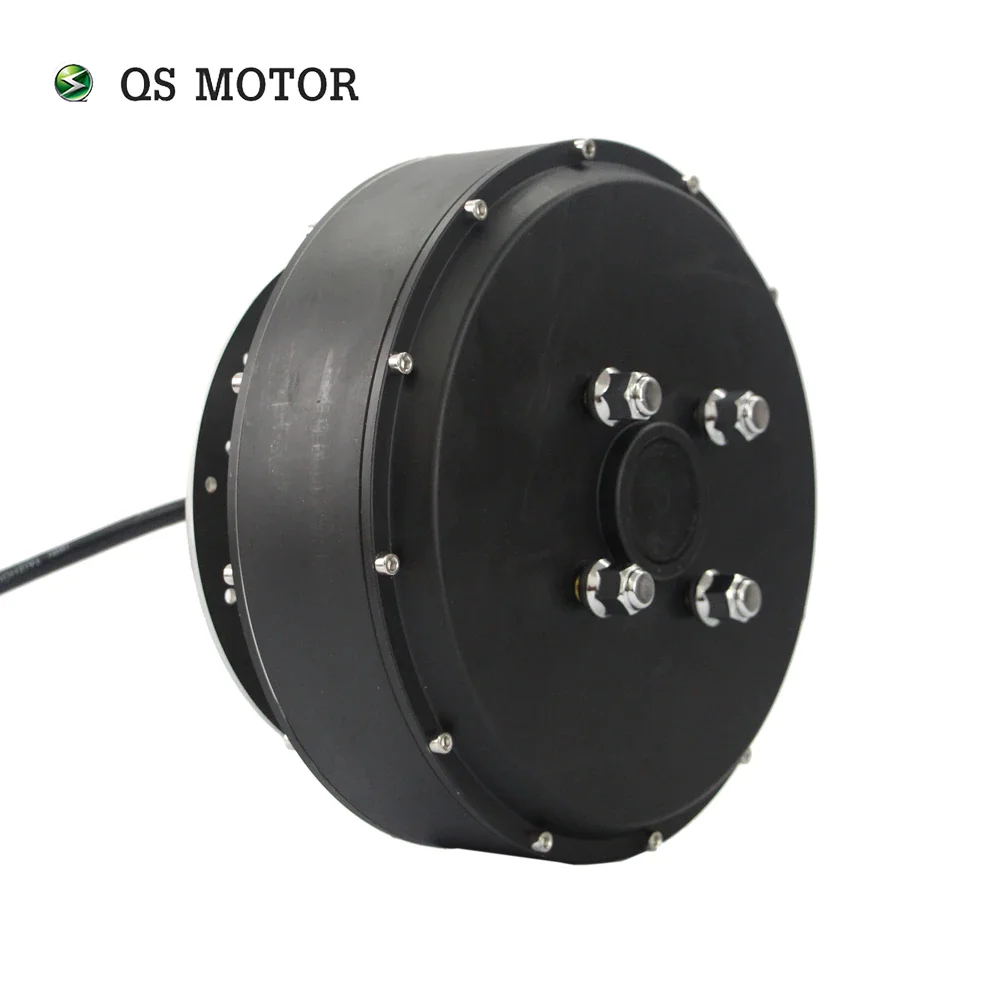

Detachable QS 1500W 260 V1 Single Shaft Hub Motor for Small e-car

For 12inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.

260 motor means the diameter of iron ring/hoop of rotor is 260mm, for all 260 motor, e.g. 12inch,13inch & 14inch 260 e-scooter hub motor, etc., the configuration & performance are the same.

Matched rim, optional, it's not included as default.

Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

PS.1). Above quotation base on 260 electric car hub motor, 48V~96V.

2). Above configuration is suggested for mass production,

for EV enthusiast, V4 motor could be over-voltaged to gain more speed/performance (customizable).

Product description

Genearlly Spec:

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

• Brand: QS Motor, QSMOTOR

• Motor Design: Single axle without moped rim (integrated)

• Matching Rim Size:12inch, 13inch & above wheel rim, CB ≥60mm,PCD ≤110mm(PCD 4*100mm, CB60mm as default)

• Magnet Height: 305mm, 28 pole pairs

• Stator: Steel Core

• Rated Power: 1500W

• Speed: 24KPH-60KPH, it's customized, genearlly we will design as 72V50KPH.

• Work Voltage range: 48V-96V, will be 72V as default.

• Max Torque approx 124.9N.m

• KV: 7.92/8.52/9.38/11.46(optional)

• Thermic Probe: KTY83-122 (as default, optional)

• Max Efficiency approx 84%

• Working Temperature: 70-120℃ , peak 150 ℃

• Brake type: Disc brake (as default), PCD 3*80MM-M8, CB 58MM

• Dual Halls with waterproof connectors(One for using, one for spare

• 12mm axle flats

• 6mm² Cross Section of Phase Wire(not including insulation layer)

• Waterproof Grade: IP54

• Color: Black (As default)

• N.W/ G.W: 23.0kg/24.7kg

Dimension Drawing:

• QS 260 e-car hub motor with 12*5.0inch wheel rim

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Conversion Kits for 260 1500W E-Car hub motor

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

Application for E-Car hub motor
