Описание товара

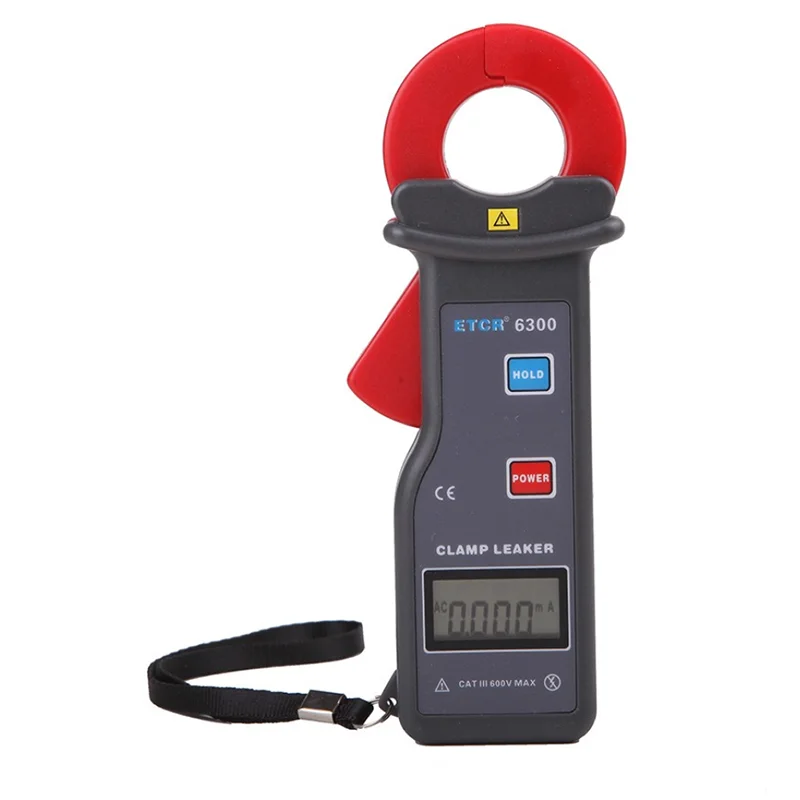

ETCR6300 Clamp Leakage Current Meter
Product Main Function
1. Measurement of AC current and leakage current, Range：AC 0.000mA～60.00A
2. Data Storage: 99 groups
3. Peak Hold
4. Line Voltage: below 600V
5. CT Size: 25mm x 30mm
ETCR6300 Clamp Leakage Current Meter suitable for measuring AC current and leakage current below 600V, range: 0.000mA~60.0A, CT size: 25mm x 30mm, the iron core adopts magnetic shielding technology, almost unaffected by the external magnetic field, strong anti-interference ability. Especially suitable for high accuracy small current measurement, adopt non-contact current measurement, safe and simple operation.The instrument is small size, high accuracy, performance stable and function perfect, which is one of the necessary tools for electrician safety inspection and maintenance..
The instrument with data hold, data storage and other functions, can store 99 groups of data, the instrument connect computer by RS232 interface, stotage data can be uploaded to the computer, easy to read, analysis, save, print and so on.
| Model | ETCR6300 | ||
| Range | 0.000mA～60.00A | ||
| Resolution | 1uA | ||
| CT Size | 25mm×30mm | ||
| Meter Size | 175×70×38mm | ||
| Meter Weight | 210g | ||
| Function | Measurement of AC leakage current, AC current and on-line AC current. | ||
| Power Supply | Alkaline dry battery 6LR61 9V,continues working 80 hours（Battery not included） | ||
| Test Mode | Clamp CT, integration method | ||
| Display Mode | 4digits LCD display | ||
| LCD Dimension | 35mm×21.5mm；display area：32mm×15mm | ||
| Sampling Rate | about 2 times/s | ||
| Frequency | Automatic identification 50Hz/60Hz | ||
| Shift | Automatically | ||
|
Accuracy （23℃±3℃, below 70%RH） |
0～59A: ±1.5%±5dgt | ||
| 60A～199A: ±2%±5dgt | |||
| 200A～299A: ±3%±5dgt | |||
| 300A～600A: ±4%±5dgt | |||
| Line Voltage | Line measurement below DC 600V | ||
| Communication Interface | With USB interface, storage data can be uploaded to computer, software monitoring | ||
| Data Storage | 99units, display FULL symbol indicate storage full | ||
| Peak Hold | Peak capture and hold function, long press HOLD key and not release can display peak value in measurement. | ||
| Data Hold | Data hold function: DH symbol display | ||
| Overflow display | Exceed measure range overflow function: OL symbol display | ||
| Auto Shut Down | 5 Minutes after power on, the meter shuts down automatically without any operation to reduce battery consumption | ||
| Battery Voltage | While battery voltage decreases to around 7.2V, will display low battery voltage symbol“ ”, and remind to replace the battery | ||
| Working Current | 5mA | ||
| Working Temperature | 0℃ ~ 40℃,below 80%rh | ||
| Storage Temperature | -10℃ ~60℃,below 80%rh | ||
| Insulating Strength | AC2KV/rms (between the core and outside shell) | ||
| Suitable Safety Standard | IEC1010-1、IEC1010-2-032、pollution, etc 2、CAT Ⅲ(600V) | ||
