96v motor controller SSC96080 80A for High Power Electric Bicycle Motor

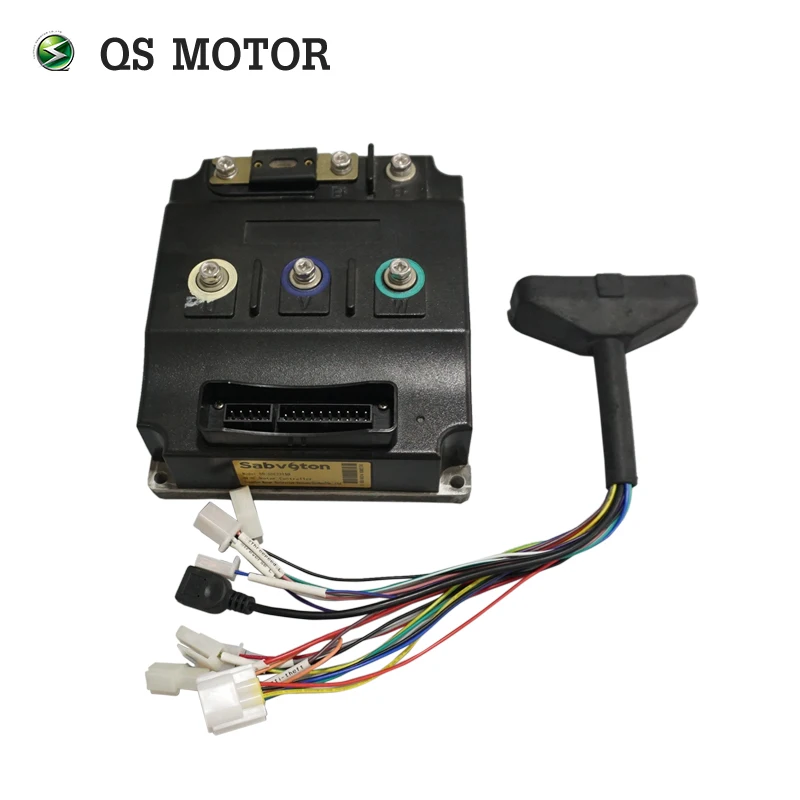

Sabvoton controller only design sine wave type controller so far, it’s brushless DC controller, 120 degree phase angle. Generally, we matched it well with QS Motor, if you want to match with new brand motor, some parameters should be tested by yourself.

Key Features

1). Cheap Cost

2). Can match with almost brushless DC motor

3). Programmable

4). Sine wave without noise

1. Generally SPEC

1). sine wave controller, programmable, with regen function

2). DC Current Limit: 80A

3). Max. Phase Current: 200A

4). Protect Phase Current: 250A

5). Battery Voltage: 24V-96V rated, Max. 120V

6). Thermic Probe: KTY83-122

7). Including one controller + USB convertor cable + matched plug

8). controller size: 186mm*165mm*70mm

9). Net weight: 2kg

10). Default including bluetooth adapter.

11). Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed Button, Hall speedometer, Reverse, curise.

12). Special functions: Waterproof, Anti-theft

Notes:

1).We have updated the 0-5v e-brake function.

Old: it should be press the brake switch then can achieve 0-5v e-brake funtion.

Update: you can achieve 0-5v e-brake function without press the brake switch.

2). For no lock type controller, there is warranty service, but we could offer our suggestions for you.

3). CA function not support anymore. You could customize the controller according to our drawing.

4). Pls. make sure all the connection is correct before power on.

2. Sabvoton Controller Software Interface

Here are the clear and easy adjustment software interface. Bluetooth adapter are optional, if you want to add it, pls. refer to this link:

3. Sabvoton SSC controller drawing

Here is drawing of Sabvoton SSC controller, 186mm*165mm*70mm

4. Pin Definition

This is drawing of SVMC controller, you could refer it to make connection and customize CA function if you want to match it with your CA display.

0-5v e-brake Pin Definition

Red: brake +5v

Brown: brake signal

Black: brake negative

Three Speed Pin Definition

Pink: high speed

Black: GND

Transparent: low speed

High brake Pin Definition

Purple: high brake

Hall Pin Definition

Red: Hall +5v

Yellow-white: temp sensor

Black: Hall negative

Yellow: Hall signal(U)

Blue: Hall signal(W)

Green: Hall signal(V)

Ignition Definition

Orange: Ignition

Hall speedometer Definition

Dark blue: Hall speedometer

Notes:

1. All RTN pins are internally connected.

2. Meter function is to copy either of hall sensors.

3. Above pin definition is for classical type controller.

Pls. contact with sales first if you don't know how to connect the controller with motor and other parts.

5. Questions before order

1). If you only want to buy the controller from us, please advise us the parameters of your matching motor?

Such as Motor Voltage, Wattage, Speed...

2). If you need any other special functions for this controller, please feel free to contact to us. Thank you!

6. Other Motor Kits and more controller models

If you are interested on more models of controller, pls. refer to below data sheet, and click the hyperlink of picture.

Note:

1). There is no warrant for unlocked type controller and 96100 controller(even though normal type).

2). For SVMC 60A model, only support classic function.

3). Customzied CA function not support anymore from May of 2017, but we will offer the drawing for you to guide how to connect with your CA displayer.

SVMC Normal Size:    247mm*146mm*62mm

SVMCxx060 Size:       215mm*146mm*62mm

SVMC96120 Size:      283mm*147mm*62mm

SSC Size:                   186mm*165mm*70mm

7. Download (before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.

8. Application

9. Company Information

10. FAQ

Q1. Are you trader or manufacture?

A: We're manufacture.

Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).

The specific delivery time depends on the items and the quantity of your order.

Q3. How long is your warranty time?

A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.

Q4. About Customs Clearance

For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.

Special countries list:

Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.

Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.

05. Does your products with CE certification?

Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949

No QS Motor, No Super EVs!
