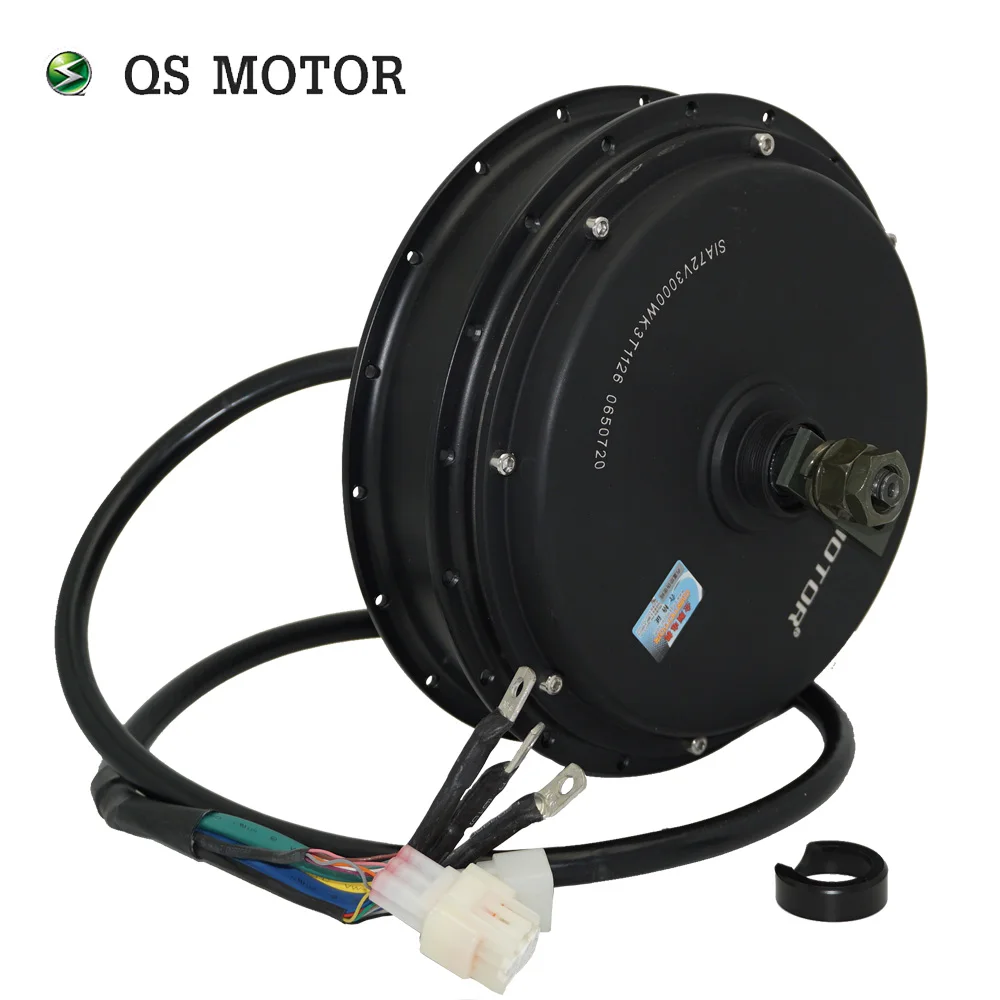

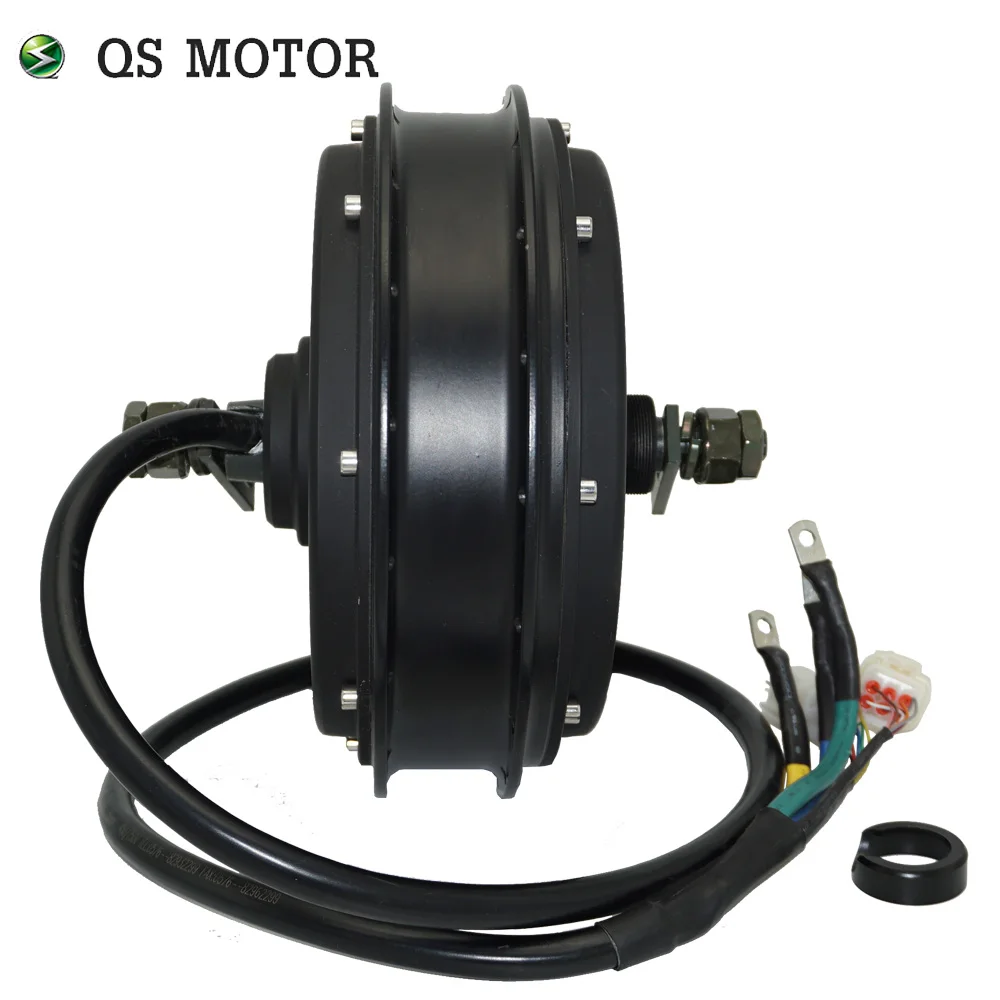

QS Motor 3000W 5000W 205 50H V3TI Spoke Hub BLDC Motor For Electric Motorbike Bicycle

For QS motor 3000w 205 50H V3TI electric motor, it’s new design and especially upgrades for e-bike. It could be 72V 70KPH-90KPH, available in a variety of sizes, such as 17inch, 18inch, 19inch moped wheel.

Key Features

1). Simplify to make a electric-bicycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Main difference between V3 and V3TI

1. Phase wire exit from thread side, which is easier to mount on bike and it looks better.

2. Phase wire change to integrated one instead of standard loose one, which improved from IP54 to IP65.

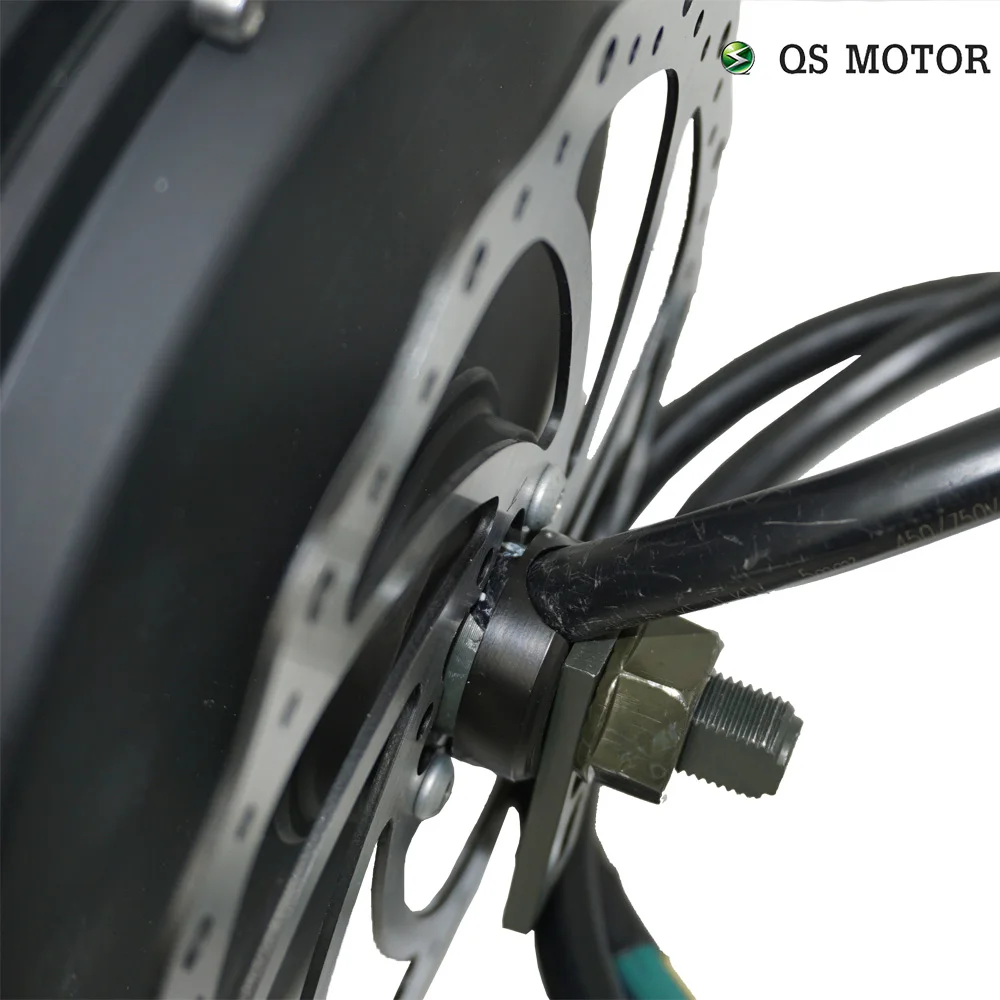

3. Add brake spacer as default, which is thinner to avoid scratch phase wire by brake disc.


For 205 spoke motor, we provide 1 piece Hex Flange Nuts M16*1.5*13, 1 piece Hex Nuts M16*1.5*7, 1 piece 4mm thick Washer as default.

Option 1:

Hex Flange Nuts M16*1.5*13 + Hex Nut M16*1.5*7

Option 2:

Hex Flange Nuts M16*1.5*13 + 4mm thick Washer

We suggest option 1, if the motor shaft length is not enough, choose option 2 and make sure the washer is installed and tight, otherwise there is a risk of shaft broken.

Product Description

SPEC

·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor,QSMOTOR

·Motor Design: double axle without rim

·Matched Wheel: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.

·Stator: Aluminum Core

·Rated Power: 3000W (6000kW peak in few seconds)

·Rated Voltage: 72V

·Speed: 820RPM / 650RPM chooseable at 72V (Else rpm, please contact seller )

·Max Torque: approx 181N.m

·Max Efficiency: approx 91%

·Continuous Battery Current: 44A (72V)

·Peak Battery Current: 100-150A

·Suggest Peak Phase Current: /A

·Thermal Probe: KTY83/122 (as default, optional)

·Working Temperature: 70-120℃ , peak 150 ℃

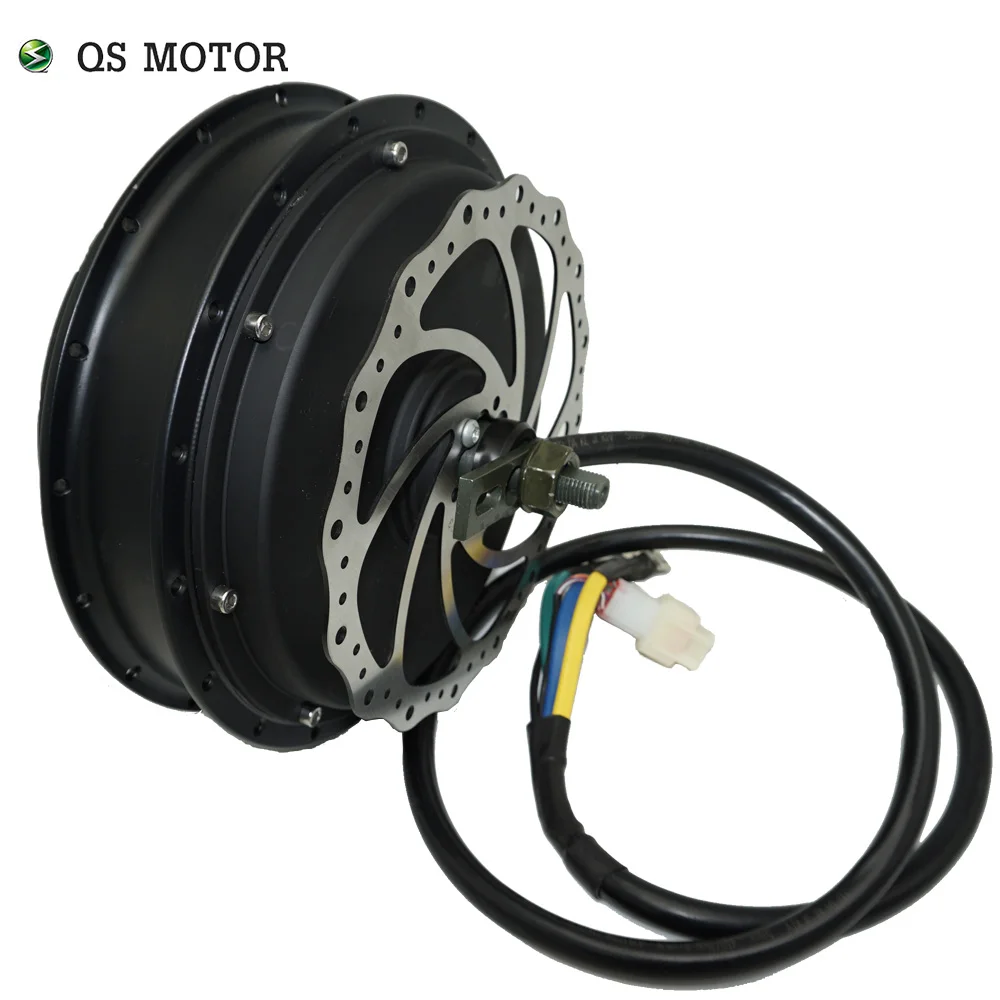

·Brake type: fit with bike disc brake, PCD 6*44mm(brake disc available as addtional option)

·Drop-outs/Rear Fork Width for installation: 150mm

·14mm English thread length for single/3 speed freewheel (not including)

·10mm axle flats

·Dual Hall Set with waterproof connectors

·2*5mm² Cross Section of new integrated Phase Wire (not include insulation layer), exit from thread side

·Hall Sensor Phasing angle: 120 degree

·Waterproof Grade: IP65

·Color: Black

·N.W./G.W.: approx 12.5/14.0kg (TBD)

·Package Dimension: 33.5cm*33.5cm*31.5cm/piece

PS. V3TI short for V3 thread integrated, which mean phase wire exit from thread side of motor axle, we plan to replace V3 motor gradually.

Dimension Drawing

Refer to V3 drawing firstly.

Test Report

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Conversion kits

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

Application

A note to client

1. Please contact seller confirm the parameter, otherwise we will produce as default.

2. Please extended 15 days more at least for order prepare when motor no in stock. (Most of motor is customized based on application, without in stock).

3. When place order please leave email address, for seller provide manual.

4. Please read manual careful before using motor and controller, and if meet problem please contact seller in time, and don't disassemble cargo without seller permit, otherwise there will be no warranty.
